Mapping Controls

The Mapping toolbar has been streamlined into a single, compact control bar so you can change what you are simulating without leaving the 3D view. Every control updates the map and any open probes in real time. Enter Mapping mode by clicking Mapping on the top bar of the main Fulcrum One window. The Mapping toolbar shows at the top of the 3D view.

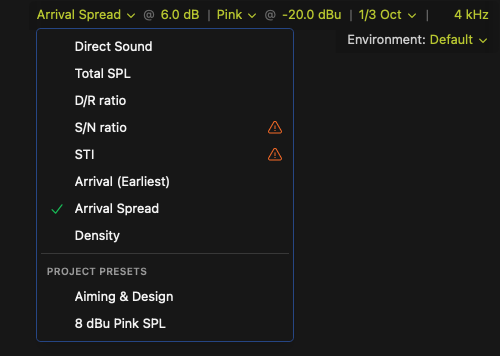

Mapping toolbar controls
New controls in Mapping mode.

Reading the bar from left to right. Control labels appear when you hover over each button in the toolbar:

  • Mode — selects the active simulation mode (Direct Sound, Total SPL, D/R ratio, S/N ratio, STI, Arrival (Earliest), Arrival Spread, or Density). Modes that require a configured environment display a warning icon when one is missing.
  • @ x dB — the SPL threshold for threshold-based modes. In Arrival (Earliest), Arrival Spread, and Density, only loudspeakers whose level is within this many decibels of the loudest arrival at each point are counted. This control is hidden for modes that do not use it.
  • Signal — the source signal used to drive the system. Available options include:
    • Pink Noise: A broadband pink noise signal with equal energy per octave.
    • EIA-426B: A broadband noise signal weighted according to the EIA-426B standard, typical for testing loudspeaker SPL capabilities.
    • Speech: A male speech signal, typically used for testing speech intelligibility or speech system output capability. This signal follows the standard STI test signal according to IEC 60268-16:2020. STI calculations always utilize this test signal.
    • Music Noise: A broadband noise signal with RMS spectrum weighted according to the AES75-2023 standard, typical for testing music system output capability.
  • @ x dBu — the amplifier input level RMS voltage level, referenced to 0.775 V. Together with the amplifier voltage gain, this sets the drive level used to calculate SPL.
  • Banding and frequency — the analyzer resolution (Broadband or fractional-octave such as 1/3 Oct) and, when a band is selected, the center frequency being displayed. Click the frequency display to open a slider that allows you to adjust the center frequency.
  • Environment — the environment whose room acoustics and noise level are applied to the room-dependent modes.

The remaining analyzer, display, and amplifier settings (weighting, color mapping, dynamic range, contours, mapping grid resolution, array grouping, and shadowing) live in the settings popover opened from the gear icon.

Project Presets

Project presets save a complete combination of mapping mode and analyzer/signal/display settings under a name so you can switch between common evaluations with a single click. Every new project ships with two built-in presets that you are free to edit, duplicate, or delete:

  • Aiming & Design — a Direct Sound preset with a 24 dB contoured scale, tuned for dialing in loudspeaker placement, splay, and coverage.
  • 8 dBu Pink SPL — a broadband Direct Sound preset driven with pink noise at 8 dBu for evaluating system SPL.

Presets appear beneath the built-in modes in the Mode menu (and in the equivalent menu on each probe tab). You can create new presets after modifying any mode, and manage presets using the Settings menu on the Mapping tab.

Probe Enhancements

Probes are listening positions you place in the model to inspect the system response at a specific point. The probe tray has been rebuilt to make it easier to organize many probes, compare results, and listen to your design. Click the Probes icon on the bottom-right of the main window to open the probe tray.

The redesigned Probes tray.

Organizing Probes

New features have been added to help you manage your probes and compare results.

  • Folders — group related probes (for example, by seating section or zone). Toggling a folder active or inactive shows or hides every probe inside it on both the map and the chart.
  • Traces — capture the current response of a probe as a saved snapshot. A trace remembers the mapping mode and settings it was taken with, so you can store a "before" curve and overlay it against the live "after" response while you make changes. Expand a probe in the list to see its traces.
  • References — overlays that are not tied to a single probe. Project Voicing plots the project's voicing target so you can compare a measured probe against your intended response. You can also Import an external trace or a target curve into the References list. Imported files follow the Smaart standard for reference curves.

Use the toolbar buttons at the top of the tray to add a probe, add a folder, duplicate, import/export, and pop the tray out into its own window. Probe responses can be exported for use elsewhere, and the gauge button toggles a Direct SPL readout next to each probe in the list.

Comparing Modes with Tabs

The chart area supports multiple tabs. The first (linked) tab always follows the mapping mode selected in the main window. Add additional tabs to pin a probe to a different mode, letting you watch—for example—Direct Sound and STI for the same probe side by side. Selecting several probes overlays their responses on the chart and shows max / average / min statistics in the header.

The chart adapts to the active mode: a frequency-response plot for SPL and ratio modes, an echogram for the arrival and density modes, and a bar graph for STI. To compare multiple probes at once, click into the 3D mapping view so it has focus and deselect any single probe in the tray—when one probe is selected, the chart highlights only that probe's trace.

Echogram probe display for time-domain modes.

Listen and POV

When a single probe is selected, two new actions appear in the probe header (and on the right-click menu):

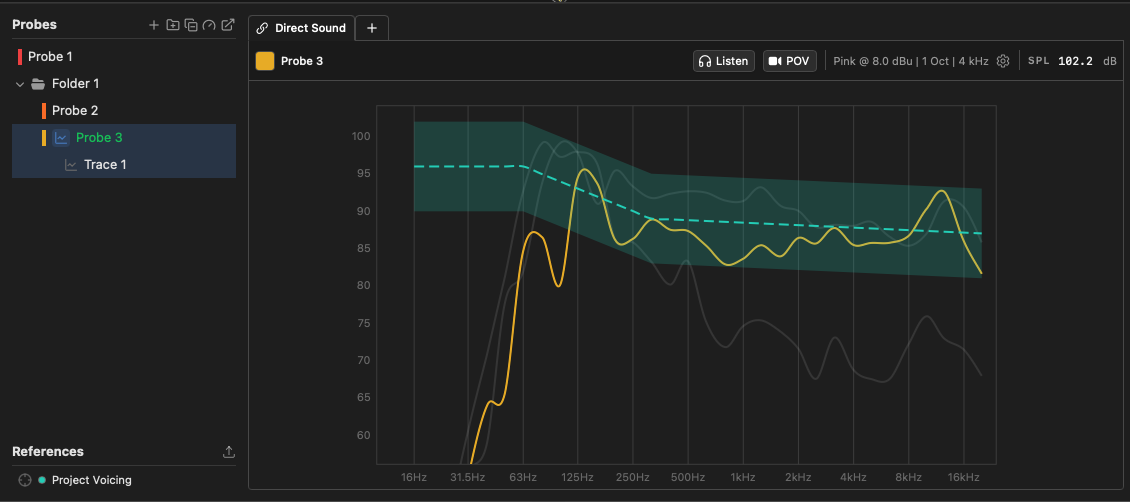

Listen and POV controls for a selected probe
Selecting a probe reveals the Listen and POV controls.

Listen auralizes the design from that probe's position over headphones using Room Auralization, so you can hear what the system sounds like at that seat.

Point of view moves the 3D camera to the probe's point of view, giving you a listener's-eye view of the system. The listener position and orientation can also be moved manually by clicking and dragging in the 3D view—head tracking is optional, not required.

Environments

An environment describes the statistical, diffuse-field acoustics of the room your system is installed in. The room-dependent simulation modes—Total SPL, D/R ratio, S/N ratio, and STI—as well as binaural Room Auralization all draw on the active environment for their reverberation time and noise level. A project can hold more than one environment (for example, Occupied and Unoccupied) so you can evaluate the system under different conditions and switch between them from the Mapping toolbar.

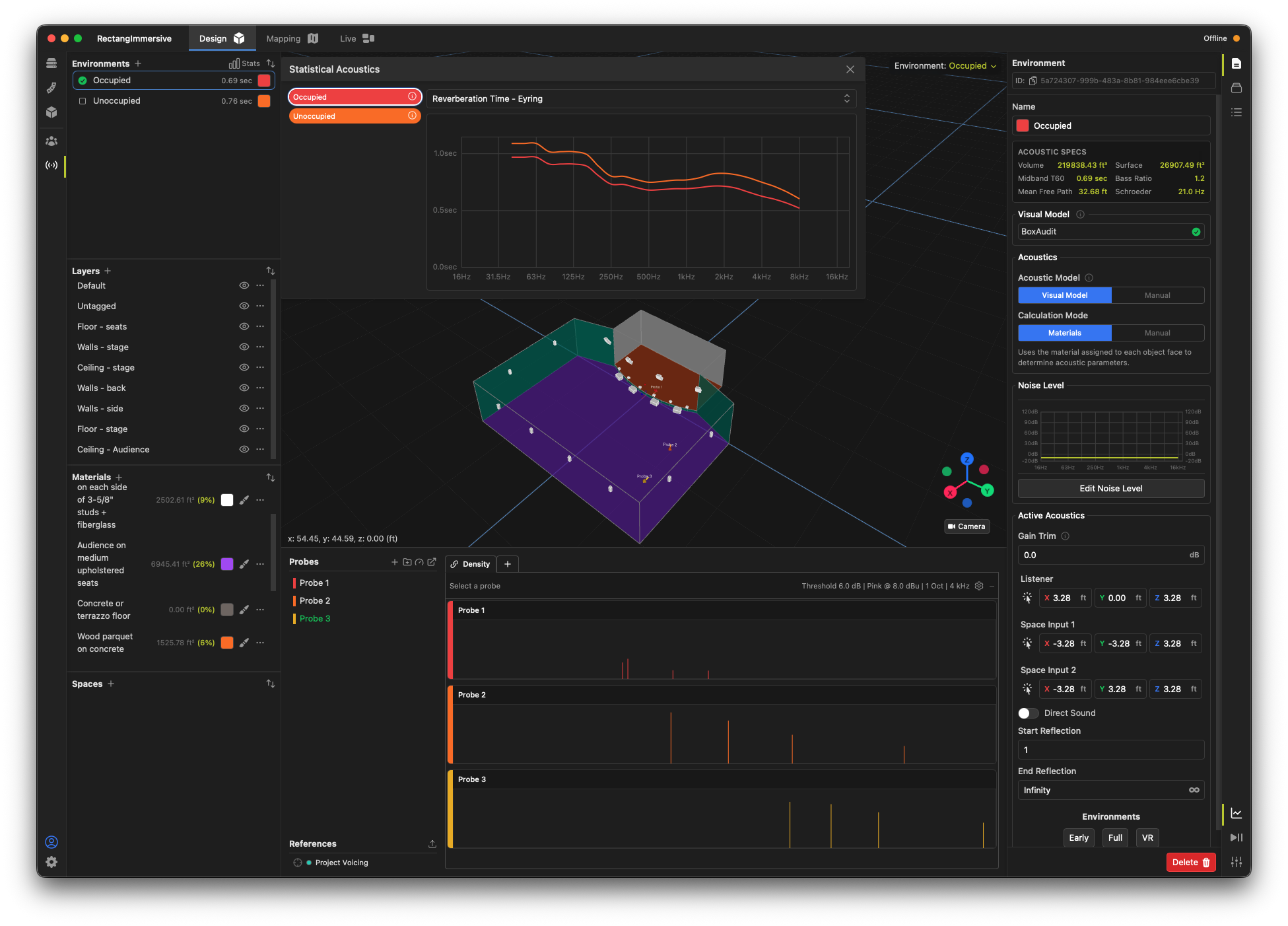

Setting up a new environment.

Each environment reports a summary of its key Acoustic Specs, derived using Eyring statistical acoustics:

SpecMeaning
VolumeEnclosed volume of the room.
SurfaceTotal interior surface area.
Midband T60Reverberation time (decay of 60 dB) averaged across the mid-band.
Bass RatioRatio of low-frequency to mid-frequency reverberation time, a measure of "warmth."
Mean Free PathAverage distance sound travels between reflections.
SchroederThe Schroeder frequency, above which the room behaves as a statistically diffuse field.

Building an Environment

There are two independent choices that define an environment:

  • Acoustic Model determines the room's size and shape. Visual Model derives the volume and surface area from the 3D objects you select in the project. Manual lets you enter the dimensions of an equivalent rectangular room directly (length, width, height, volume, and an optional position offset).
  • Calculation Mode determines how the reverberation time is found. Materials uses the acoustic absorption of the material assigned to each surface (or a single material, for a manual room). Manual lets you type or draw the reverberation time curve yourself with Edit Reverberation Time.

A Noise Level curve sets the ambient background noise of the space, which feeds the S/N ratio and STI calculations. Edit it with Edit Noise Level.

Manually configured environment with custom reverberation time

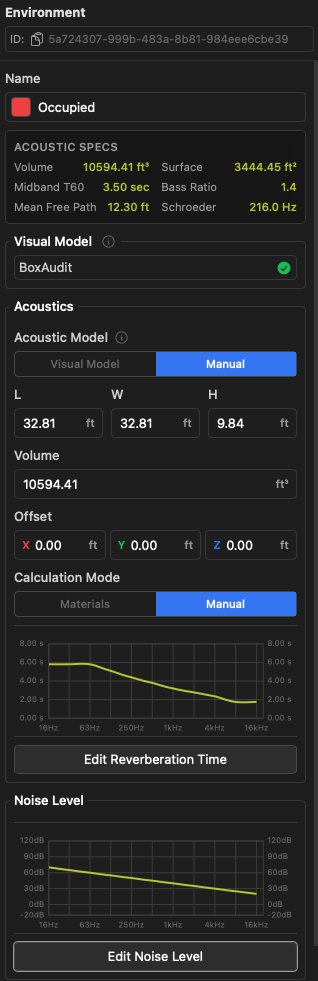

A manually configured environment with a custom reverberation time.

Active Acoustics

When an environment is used to drive an Active Acoustics virtual space, the Active Acoustics section provides additional controls: a Gain Trim for the convolver, Listener and Space Input positions, a Direct Sound toggle, and Start/End Reflection limits that bound which portion of the impulse response is rendered. The Early, Full, and VR buttons apply common combinations of these settings.

Simulation Modes

In addition to the previous Direct-Sound SPL mapping capability that Fulcrum One has included in previous versions, this version of One includes a number of additional acoustical simulation modes to assist in the design of an audio system to your specifications and expectations.

TypeModeApplicationProbe Display
SPL and coverageDirect SoundIdentical to previous versions, this mode shows the direct sound incident on the mapping area or probe with no influence from room reflections.Direct Sound spectrum
Total SPL(1)This parameter includes the direct sound plus the reverberant sound level at every location. Useful for determining the maximum SPL capability of the system including the influence of the room itself.Total SPL spectrum
Quality metricsD/R Ratio(1)Direct-to-reverberant ratio, the level difference between direct and reverberant energy. This ratio suggests the potential clarity and immediacy of the source in a reverberant space.Direct to reverberant ratio as spectrum
S/N Ratio(1)Signal-to-noise ratio, the ratio of the Total SPL of the system and room to the background noise. Used to gauge intelligibility and system output capacity in the presence of noise.Signal to noise ratio as spectrum
STI(1)Speech Transmission Index, a standardized 0–1 metric predicting speech intelligibility. Used to verify announcement and speech clarity.Bar graph of STI at probes
Timing metricsArrival (Earliest)Time of the first-arriving loudspeaker at the listener location. Used to set delays and check time alignment across the system.Echogram
Arrival SpreadSpread in arrival times of loudspeakers at the listener location. Indicates temporal smearing from multiple arrivals and reflections and the potential for echoes in large venues.Echogram
QuantityDensityNumber of loudspeakers audible at a specific location inside a level threshold. Useful for gauging overlap in conventional systems and panning efficiency in immersive designs.Echogram

Direct Sound

The Direct Sound mode shows the energy contributed from each loudspeaker to the mapping area or probe with no contribution from room reflections. This is the same SPL behavior available in previous versions of Fulcrum One and serves as the baseline for evaluating system coverage and level. Because it ignores the room entirely, Direct Sound is the most reliable way to judge loudspeaker aiming, coverage uniformity, and the level relationships between sources. Use it early in a design to dial in physical placement and splay before layering in the room-dependent metrics.

Direct sound does include the effects of air loss and propagation delay based on the temperature and humidity settings in the project. The summation for Direct Sound is coherent (complex) in nature.

See Loudspeaker Coverage Mapping for more information.

Example project, direct sound broadband SPL.

Total SPL

Total SPL combines the direct sound with the reverberant energy contributed by the room, giving the full sound pressure level a listener would experience at every location. This reflects how the space itself reinforces the system output and the total sound pressure level you can expect to achieve under the simulated conditions.

To obtain this value, the reverberant field intensity is computed based on the current environment and the sound power of each loudspeaker in the room (assuming a diffuse, statistical reverberant field). This intensity is added to the coherently-summed Direct Sound intensity at each location. The Total SPL sum does not include the ambient room noise, but only energy originating from the loudspeaker system.

Use Total SPL to verify the maximum output capability of the system in its installed environment, to check headroom against target levels, and to understand how much the room contributes to overall loudness. In highly reverberant spaces the difference between Direct Sound and Total SPL can be significant. This evaluation should be done in concert with quality metrics like STI or direct-to-reverberant ratio to qualify the result beyond overall level.

Compare the Total SPL result below to that of the example above to see a typical increase in SPL due to room effects, which can be very frequency-dependent in nature.

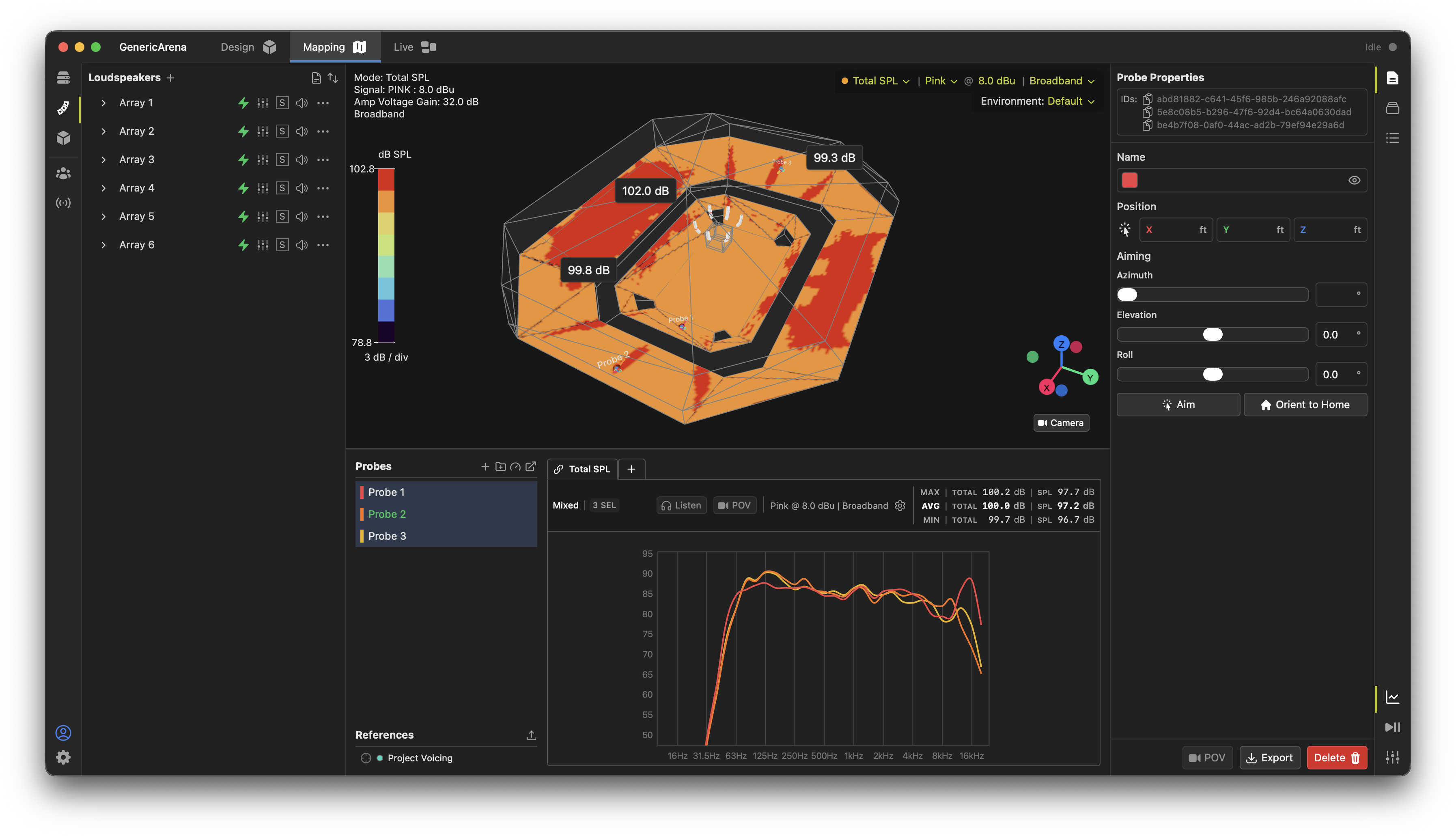

Example project, total broadband SPL.

D/R Ratio

The Direct-to-Reverberant ratio expresses the level difference between the direct sound and the reverberant field. A higher D/R ratio means the direct sound dominates, which generally translates to a clearer, more immediate, and better-localized source.

To obtain this value, the reverberant field intensity is computed based on the current environment and the sound power of each loudspeaker in the room (assuming a diffuse, statistical reverberant field). This intensity is compared against the coherent direct sound summation at each location. The D/R ratio does not include the ambient room noise, but only energy originating from the loudspeaker system.

Use D/R Ratio to predict the perceived clarity and intimacy of the system in a reverberant space, to compare loudspeaker layouts that trade off coverage against directivity, and to identify areas where reflections may overwhelm the intended sound.

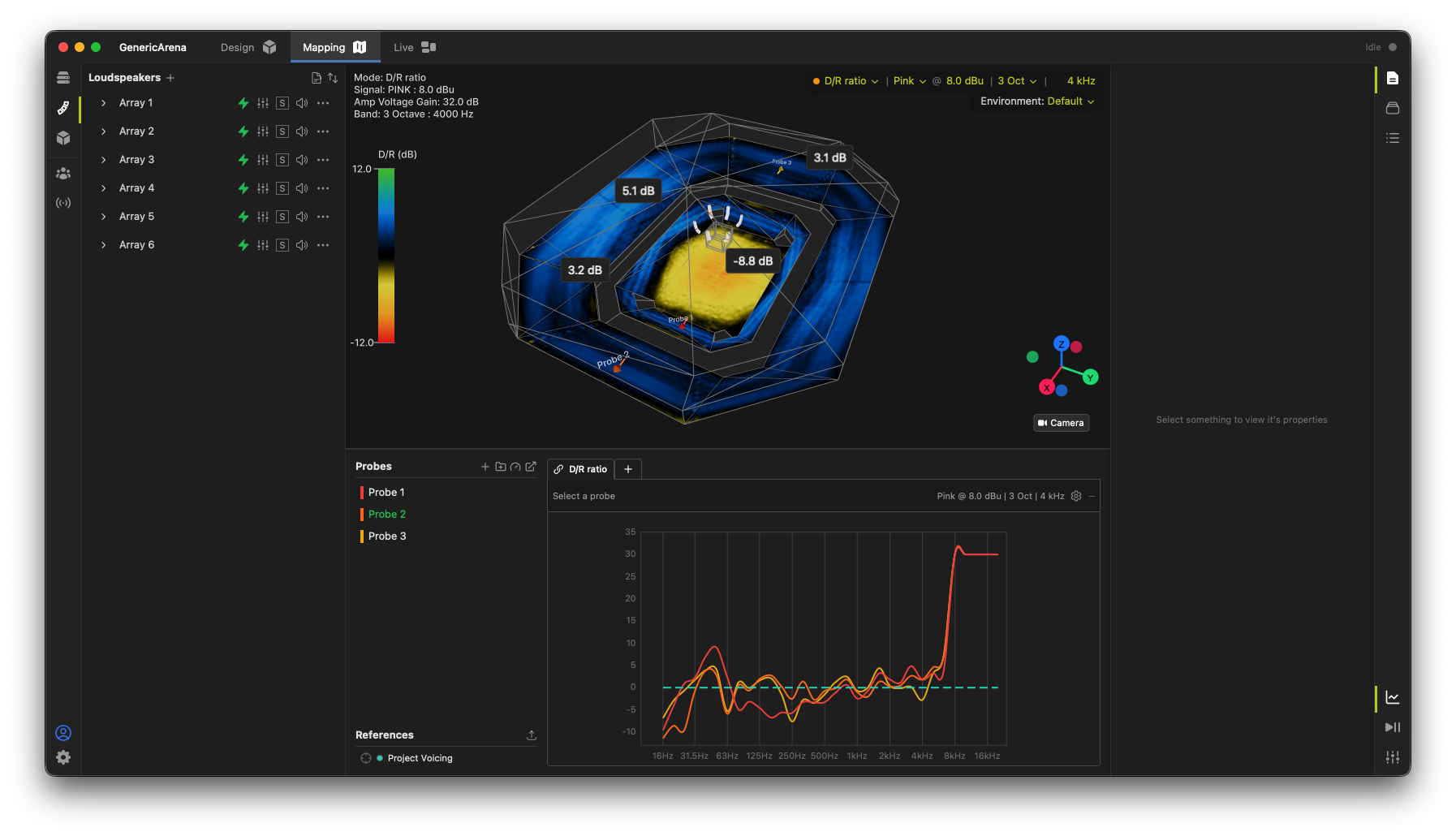

Example project, direct-to-reverberant ratio at 4kHz.

S/N Ratio

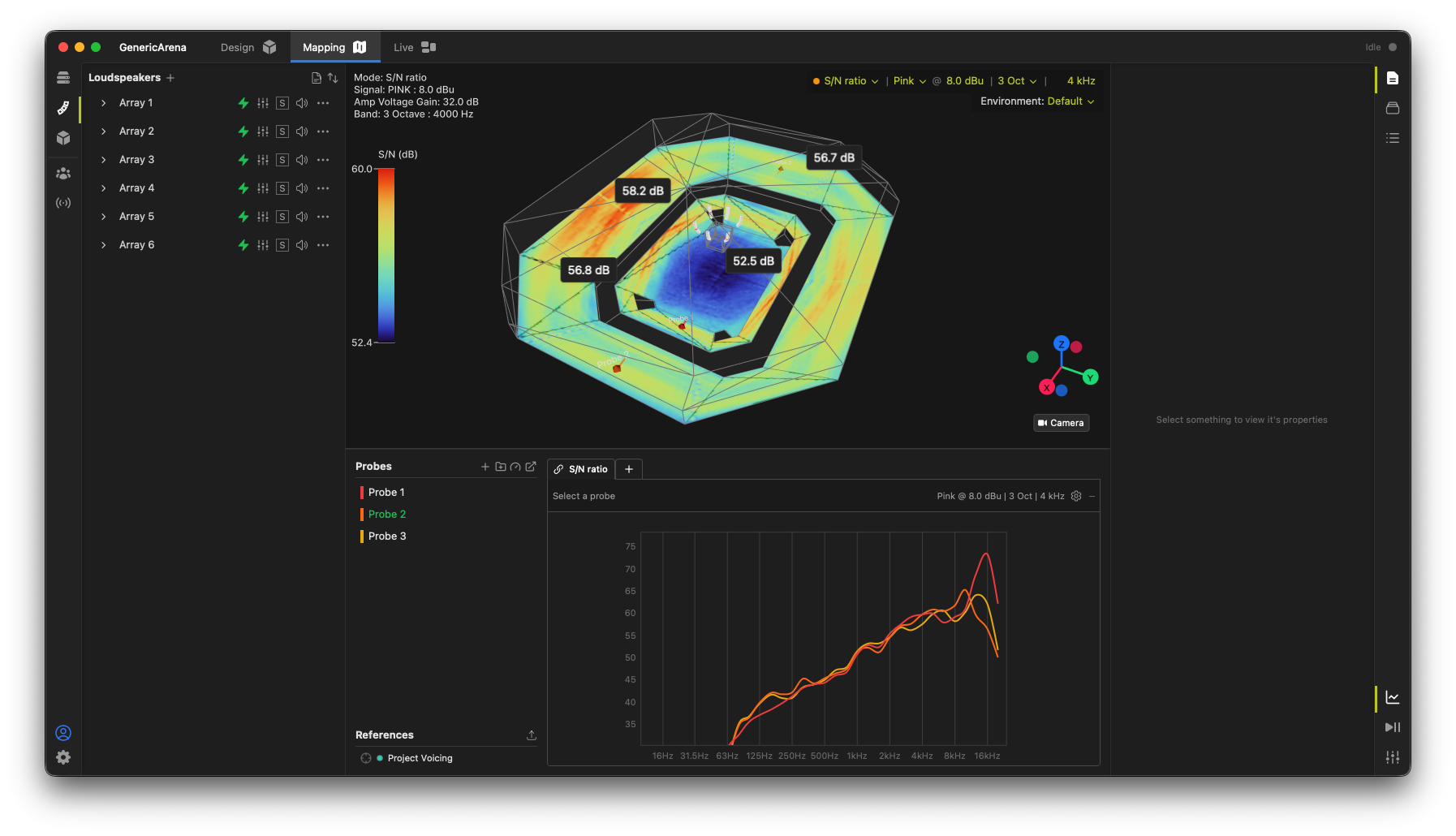

The Signal-to-Noise ratio compares the Total SPL of the system and room against the venue's background noise level. It indicates how far the program material rises above ambient noise at each location.

To obtain this value, the Total SPL is calculated per the method outlined above and compared against the ambient room noise at each location, assuming both the reverberation and room noise are statistically diffuse throughout the space.

Use S/N Ratio to gauge intelligibility and required output capacity in the presence of HVAC, crowd, or environmental noise, and to confirm that the system can deliver adequate level above the noise floor across the entire listening area.

Example project, signal-to-noise ratio at 4kHz.

STI

The Speech Transmission Index is a standardized metric on a 0–1 scale that predicts speech intelligibility, accounting for direct sound, reverberation, and background noise together. Higher values indicate clearer, more intelligible speech.

STI is computed based on the current environment settings for reverberation time and noise level, and evaluates these metrics against the direct sound at each mapping or probe location. The calculation adheres to IEC 60268-16:2020 using the Houtgast statistical method with a male speech signal. Note that this analysis ignores time-domain defects (echoes, system time alignment, etc.) and assumes the reverberant and noise fields are fully diffuse and isotropic.

By default, Fulcrum One displays the STI results in contour mode using the following categories as defined by IEC 60268-16:2020:

STI Label RangeStandard STI
Bad0.0 - 0.30
Poor0.30 - 0.45
Fair0.45 - 0.60
Good0.60 - 0.75
Excellent0.75 - 1.00

Use STI to verify that announcements, paging, and speech content meet intelligibility requirements—including code-mandated thresholds for life-safety and voice-evacuation systems—and to target problem zones where reverberation or noise degrades clarity.

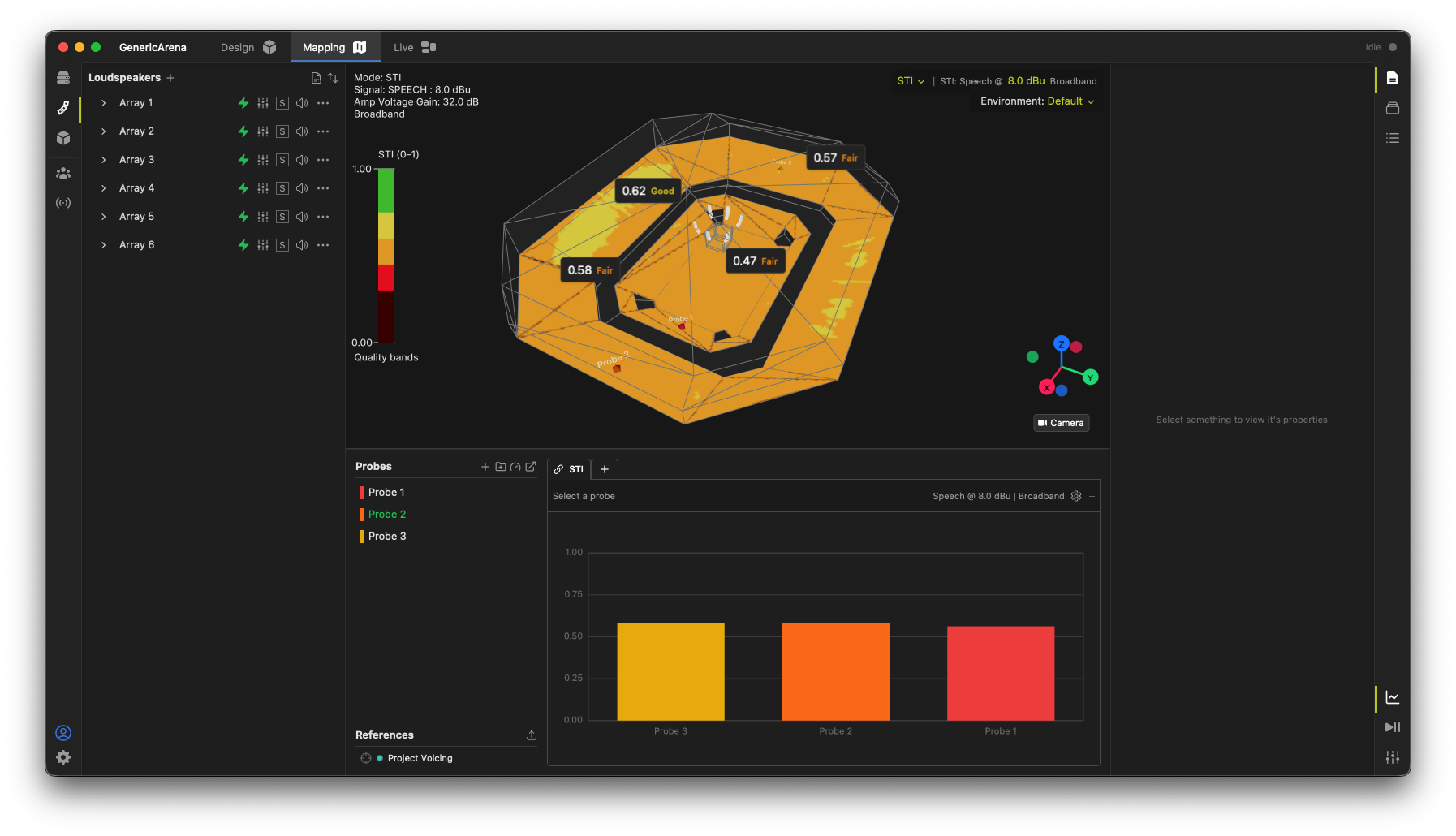

Example project, speech transmission index.

Arrival (Earliest)

Arrival (Earliest) reports the arrival time of the first loudspeaker to reach each listener location within a defined level threshold relative to the loudest loudspeaker at that location. It maps how sound propagates through the space from the nearest contributing source. Set the threshold relative to the loudest arrival using the "@ dB" control in the mapping control pane:

Arrival (Earliest) threshold control

Use this parameter to set delay times, to verify time alignment across zones and fills, and to ensure that the intended source arrives first so that localization and front-to-back imaging behave as designed.

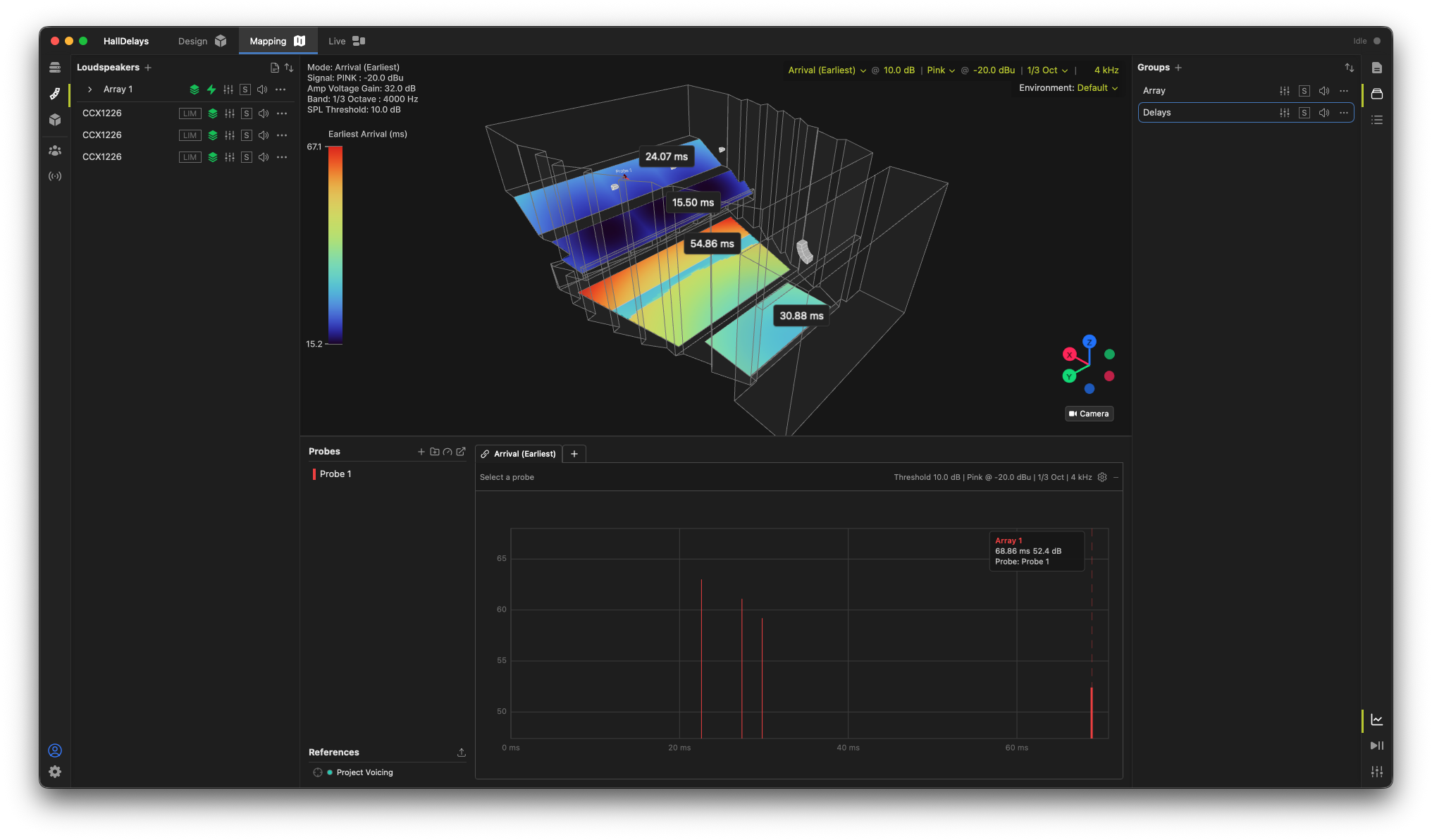

Balcony system, earliest arrival before adding delay.

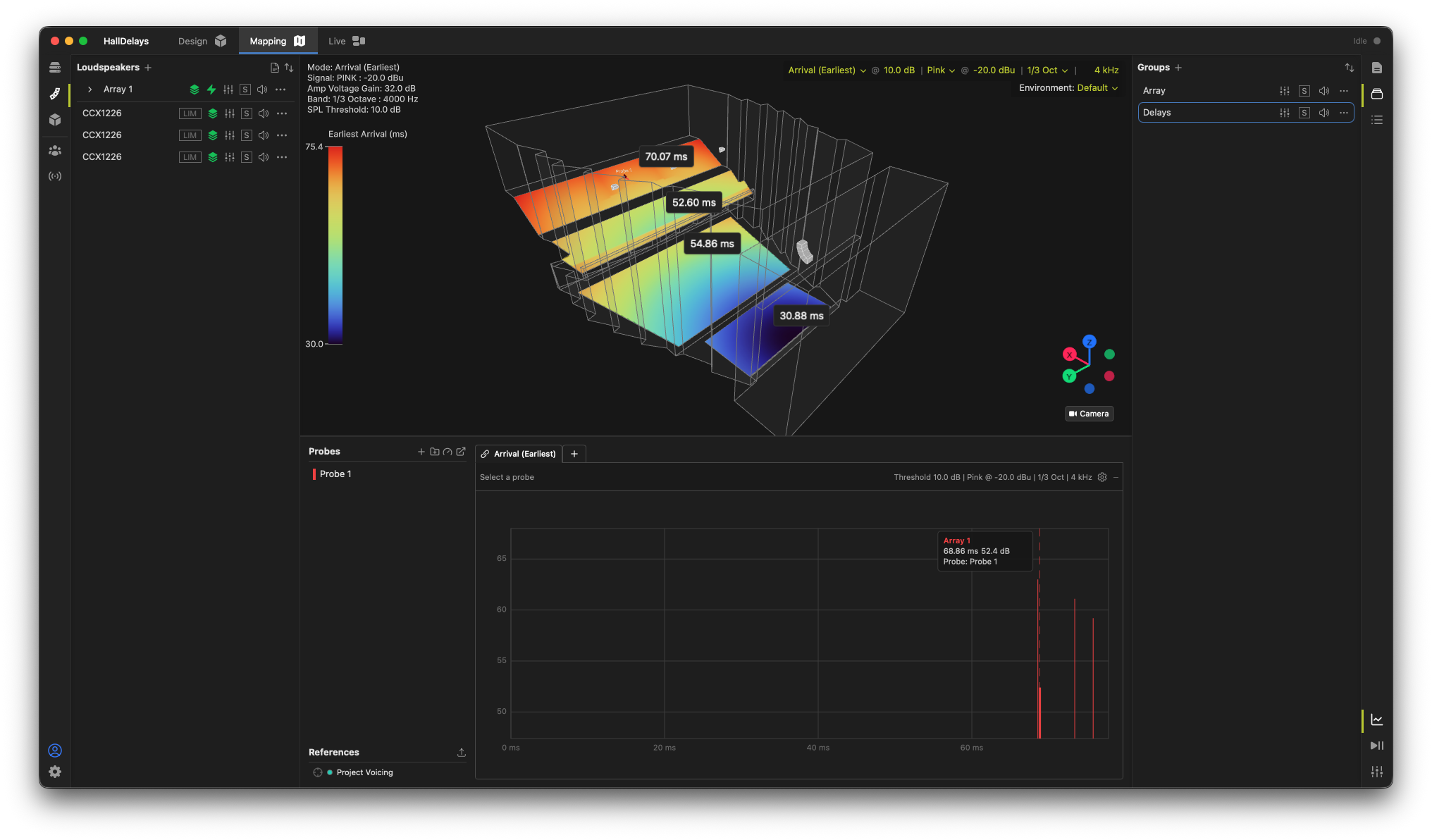

Balcony system, earliest arrival after adding delay.

Arrival Spread

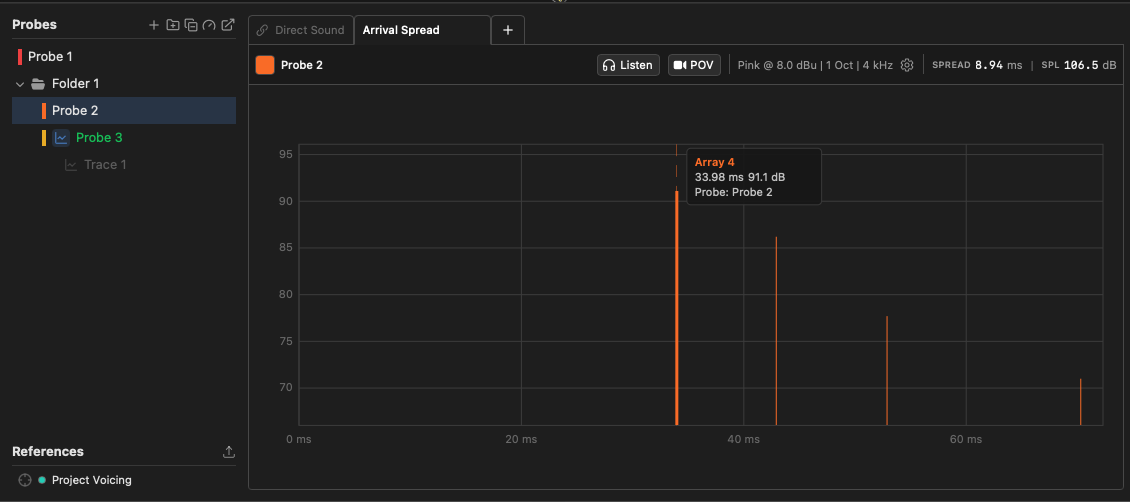

Arrival Spread shows the range of arrival times from all loudspeakers contributing at a given location. A wide spread indicates temporal smearing caused by multiple arrivals.

Set the threshold using the "@ dB" control in the mapping control pane:

Arrival Spread threshold control

Use Arrival Spread to identify regions prone to echoes or comb filtering, particularly in large venues with many overlapping sources, and to refine delay and coverage decisions that tighten the system's temporal response.

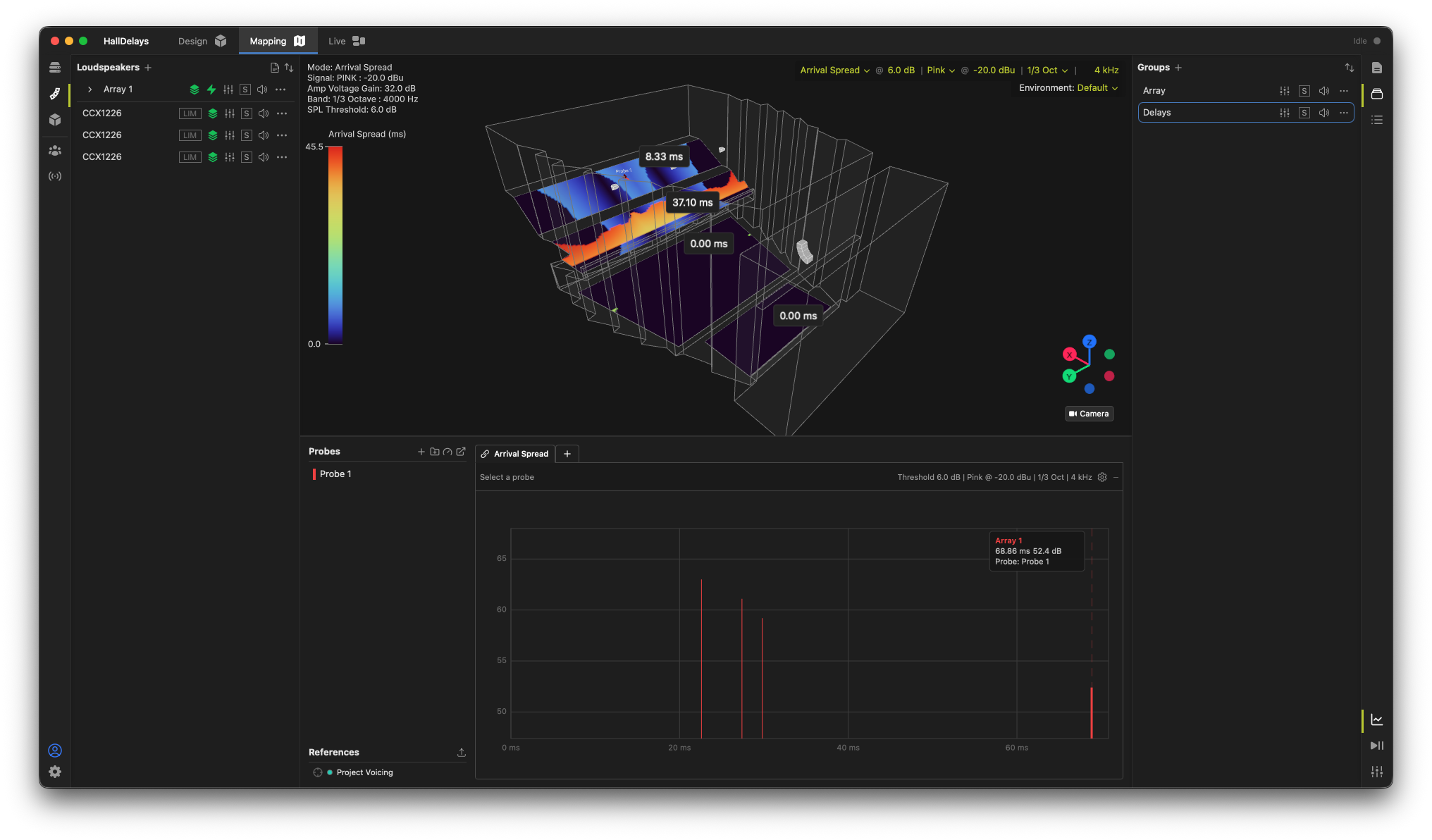

Balcony system, arrival spread before adding delay.

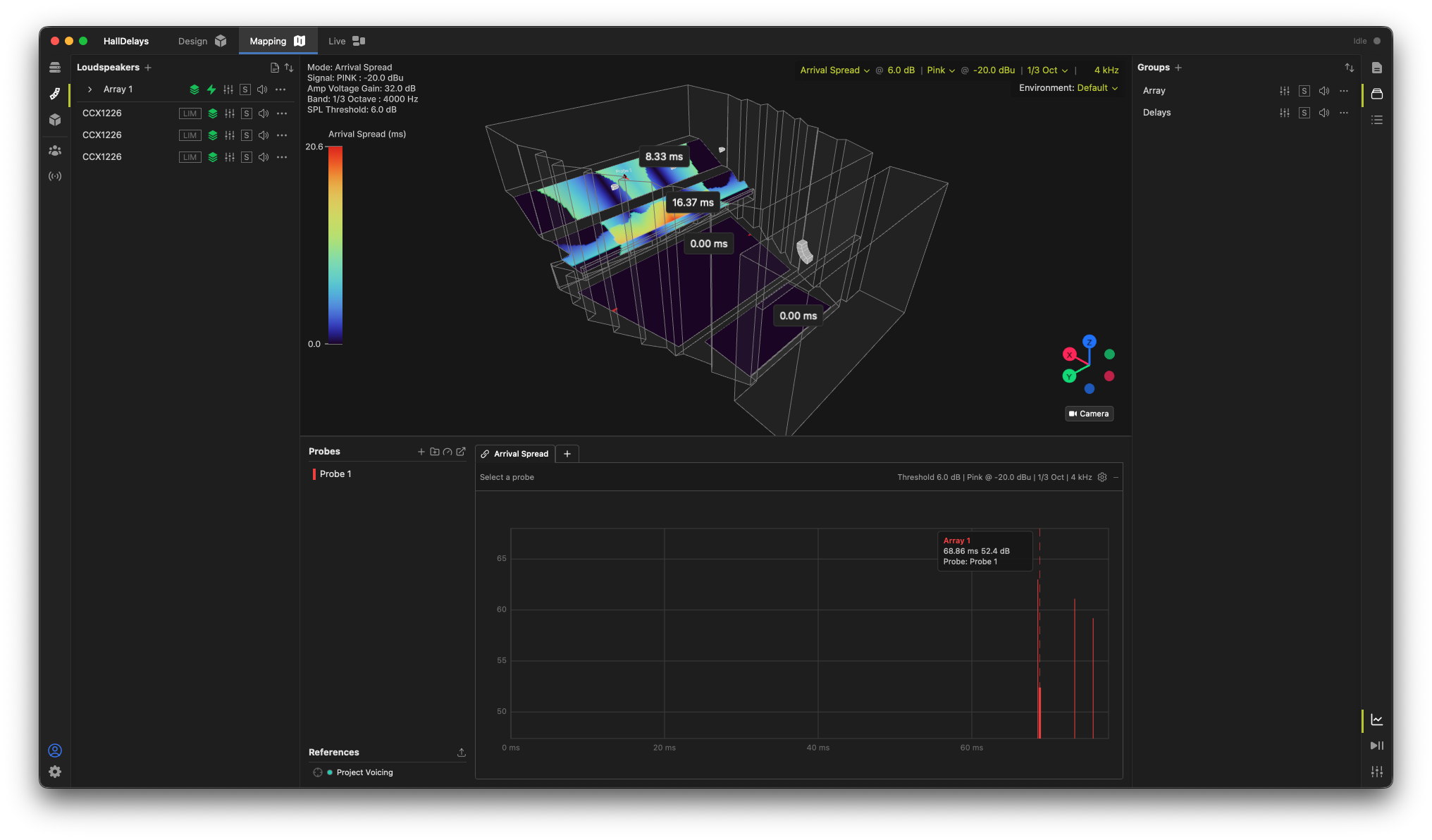

Balcony system, arrival spread after adding delay.

Density

Density counts the number of loudspeakers audible at a location within a defined level threshold relative to the loudest loudspeaker at that location. It reveals how many sources are meaningfully contributing at each point in the coverage area. Set the threshold using the "@ dB" control in the mapping control pane:

Density threshold control

Use Density to gauge overlap and redundancy in conventional systems, and to evaluate panning efficiency in immersive designs—where the number of contributing loudspeakers directly affects the precision and stability of spatial imaging. Any open Probes will show an echogram when using this mode, allowing you to further explore loudspeaker arrivals at probe locations.

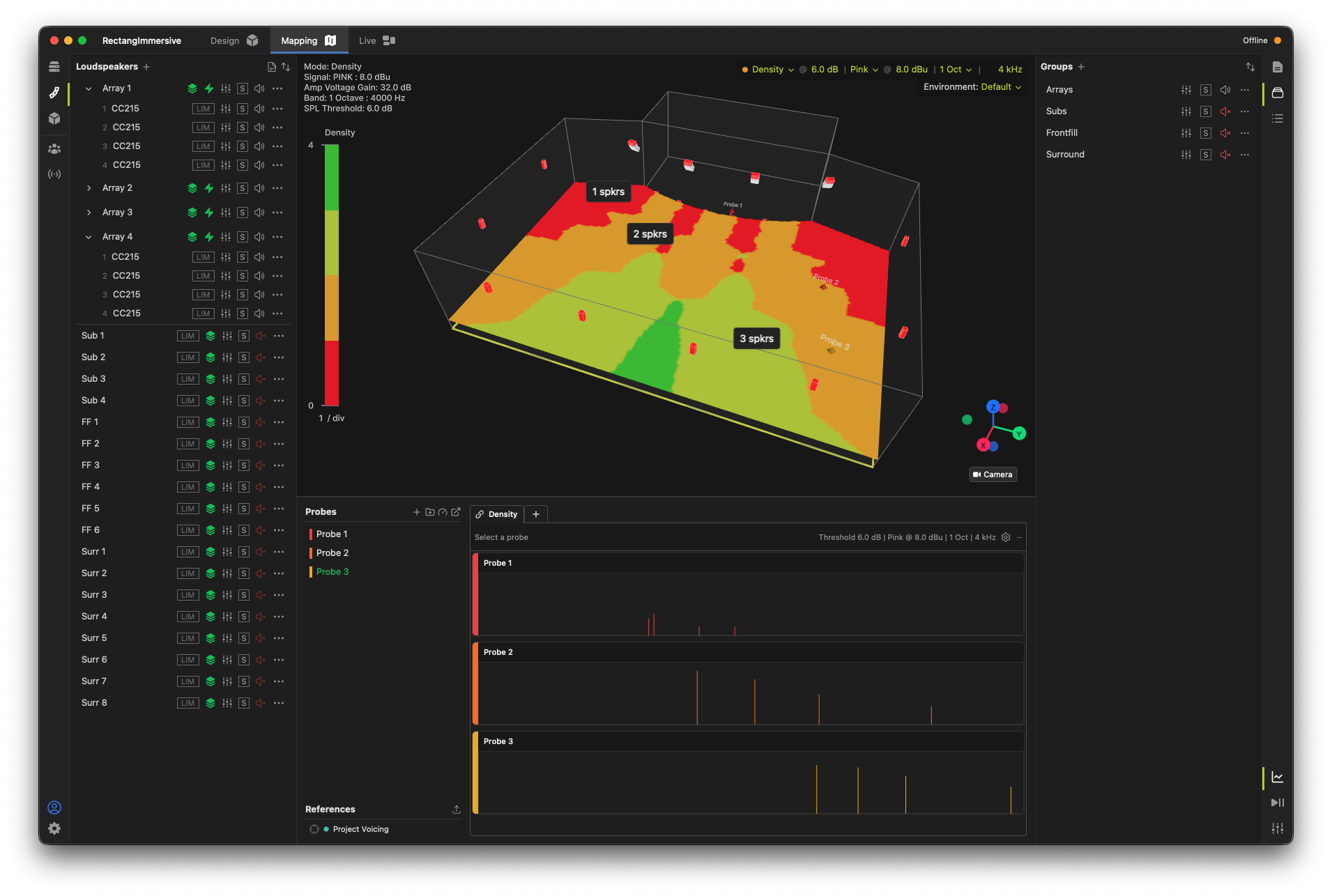

Example immersive project, Density mode.

Room Auralization

Room Auralization lets you hear your loudspeaker design over a pair of headphones, rendered binaurally from the position of a mapping probe and including the reverberation of the active environment. It is the audible counterpart to the simulation modes: where the map shows you the numbers, Room Auralization Mode lets you listen to the result from any seat in the venue.

To start, select a single probe and press Listen

Probe selected for Room Auralization Mode
Selecting a probe for Room Auralization Mode.

Quickstart

The first time you listen, a short Room Binaural Quickstart wizard walks you through the required setup. Once it is complete, the probe Listen button starts playback directly.

Room Quickstart, audio step Room Quickstart, patch step Room Quickstart, start step

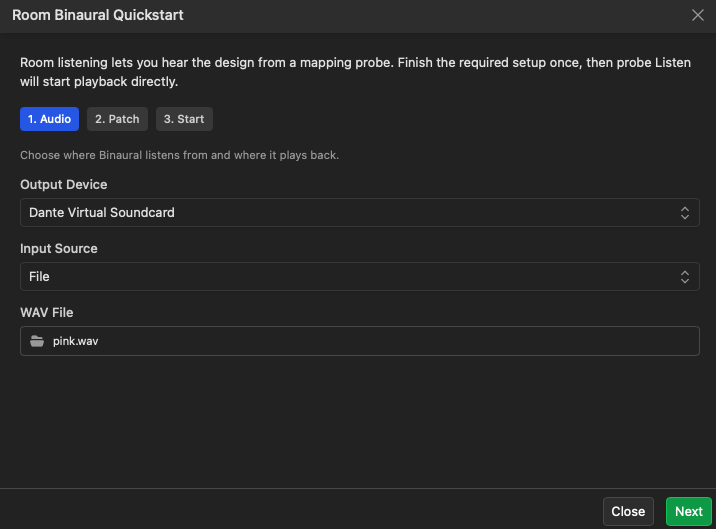

  1. Audio — choose the output device for your headphones and the input source. The input can be a live audio device or a WAV file (such as a piece of program material).

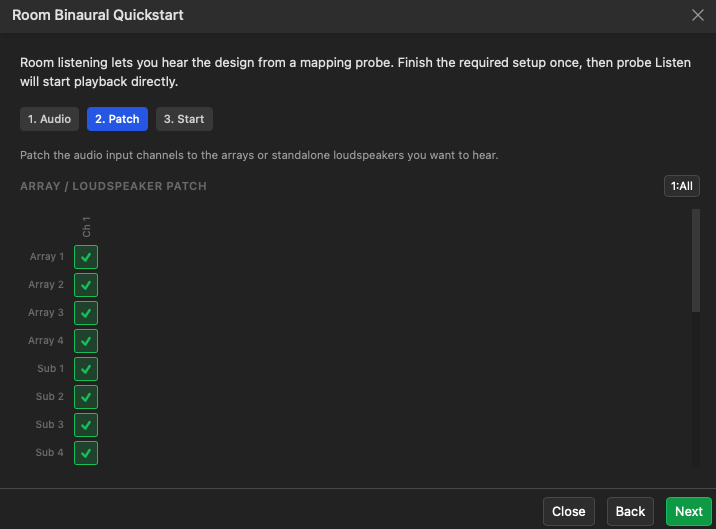

  2. Patch — route the input channels to the arrays and standalone loudspeakers you want to hear. Use 1:All to send a single input channel to every loudspeaker at once.

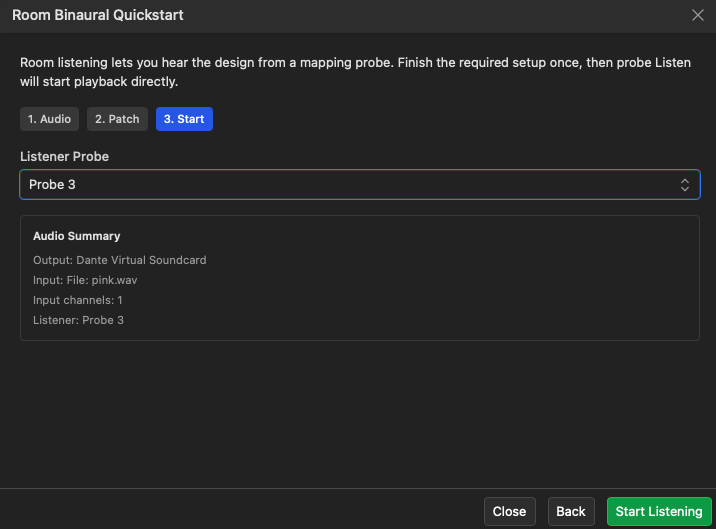

  3. Start — pick the Listener Probe to render from and review the audio summary before you begin.

Playback and Head Tracking

While listening, the Binaural Playback panel provides transport controls, output device and listener-probe selection, an output level, and a level meter.

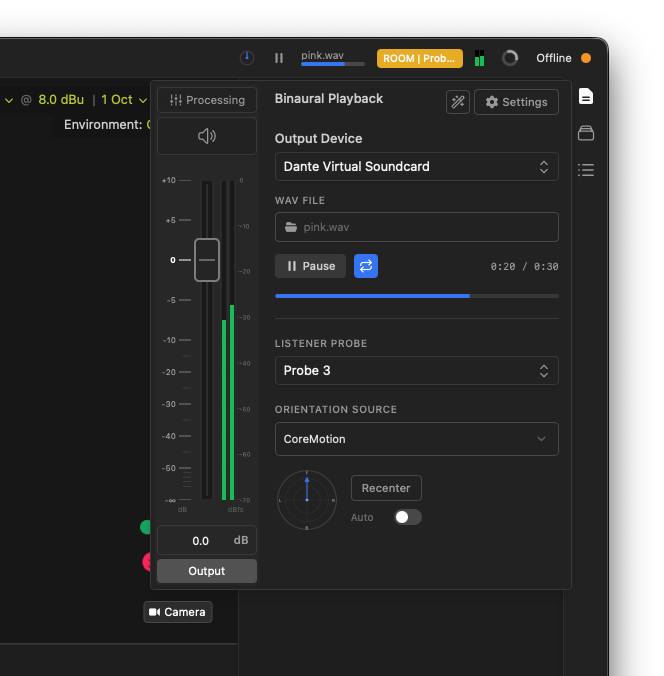

Binaural Playback panel in Room Auralization Mode
Main window controls for Room Auralization Mode.

The Orientation Source controls how the listener's head orientation is determined. Choose Manual to set the yaw/pitch/roll by hand (or by clicking and dragging the POV camera in the 3D view), or CoreMotion to track supported Apple headphones directly on a Mac (see Binaural Head Tracking). Head tracking is optional—you can position and orient the listener entirely by hand. Use Recenter to make the current head position the new forward reference, and enable Auto Recenter to do so automatically after a set period of stillness.

Click the Settings cog to see additional settings for Room Auralization Mode in the Binaural submenu.

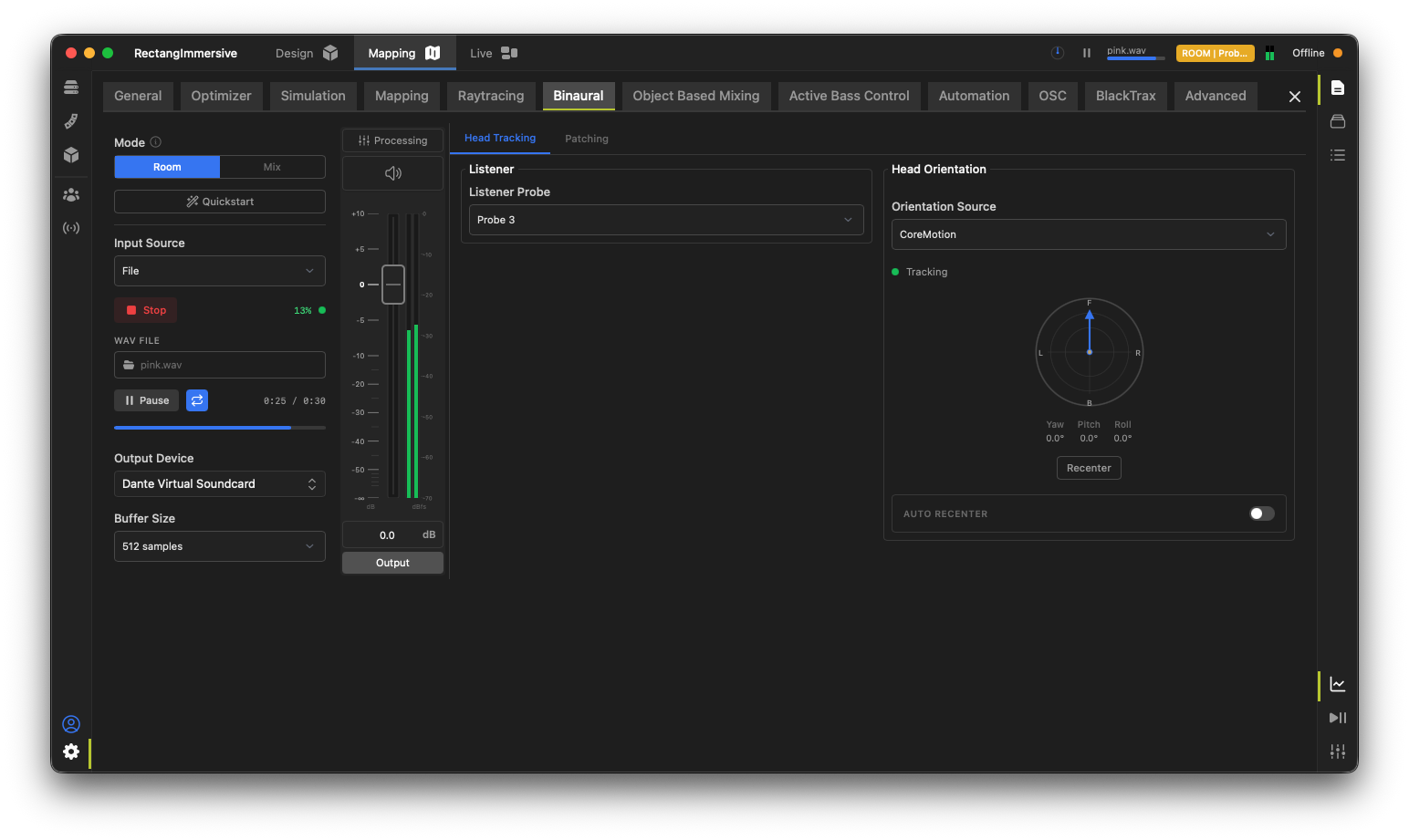

Binaural settings for Room Auralization Mode
Binaural settings in Room Auralization Mode.

Mix Auralization

Mix Auralization monitors your Object-Based Mix (OBM) over headphones. Where Room Auralization Mode renders a loudspeaker system from a probe, Mix Auralization Mode renders the mix itself—each OBM source placed at its position in space—so you can audition panning and spatial imaging on headphones, optionally with room sound contributed by your acoustical spaces.

In Live mode, start monitoring with the Listen action on any source or fader in the Object-Based Mixing panel.

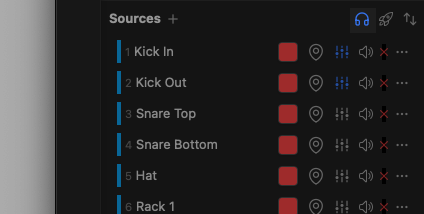

OBM sources with the Listen action

Quickstart

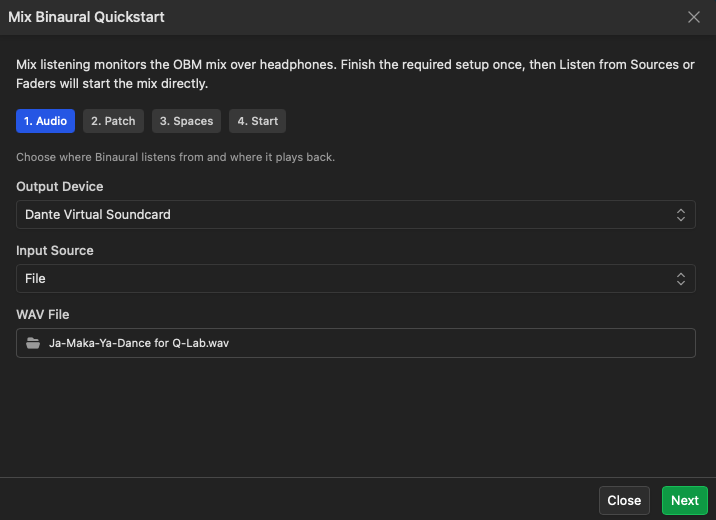

The Mix Binaural Quickstart wizard handles the one-time setup.

Mix Quickstart, audio step Mix Quickstart, patch step Mix Quickstart, spaces step Mix Quickstart, start step

  1. Audio — choose the headphone output device and the input source (a live device or a multichannel WAV file, such as a multitrack stem session).

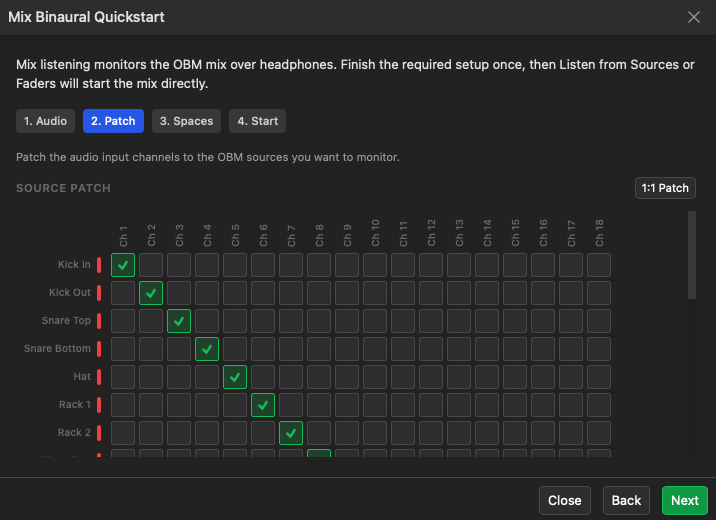

  2. Patch — route the input channels to your OBM sources. Use 1:1 Patch to map sources to channels in order.

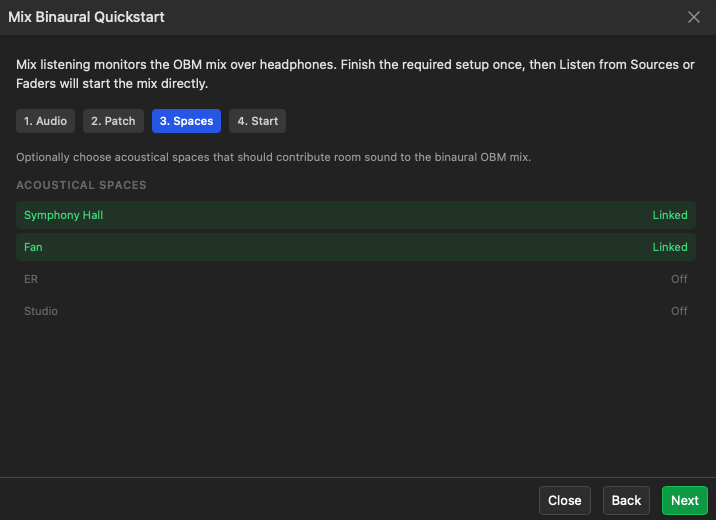

  3. Spaces — optionally link one or more active acoustics Spaces so their room sound is folded into the binaural mix.

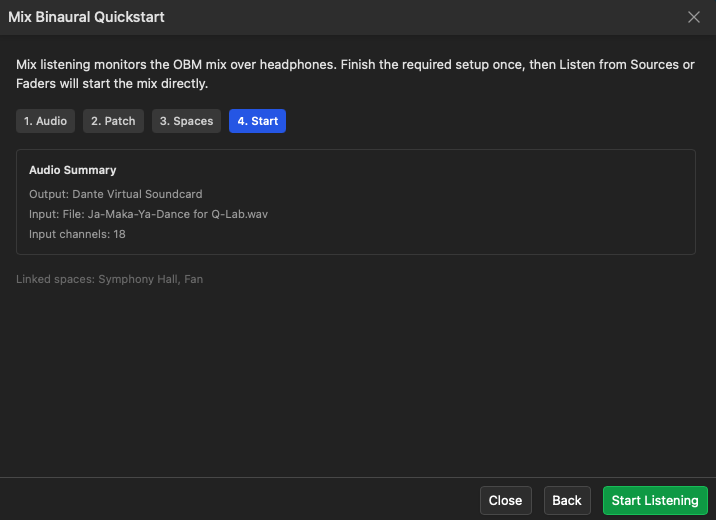

  4. Start — review the audio summary, including any linked spaces, and begin.

Playback and Head Tracking

The Binaural Playback panel provides transport, output, and metering. Head orientation can be driven manually or by CoreMotion head tracking with recenter and auto-recenter support—see Playback and Head Tracking under Room Auralization for the orientation controls, POV camera interaction, and setup details.

Mix Auralization Mode playback controls

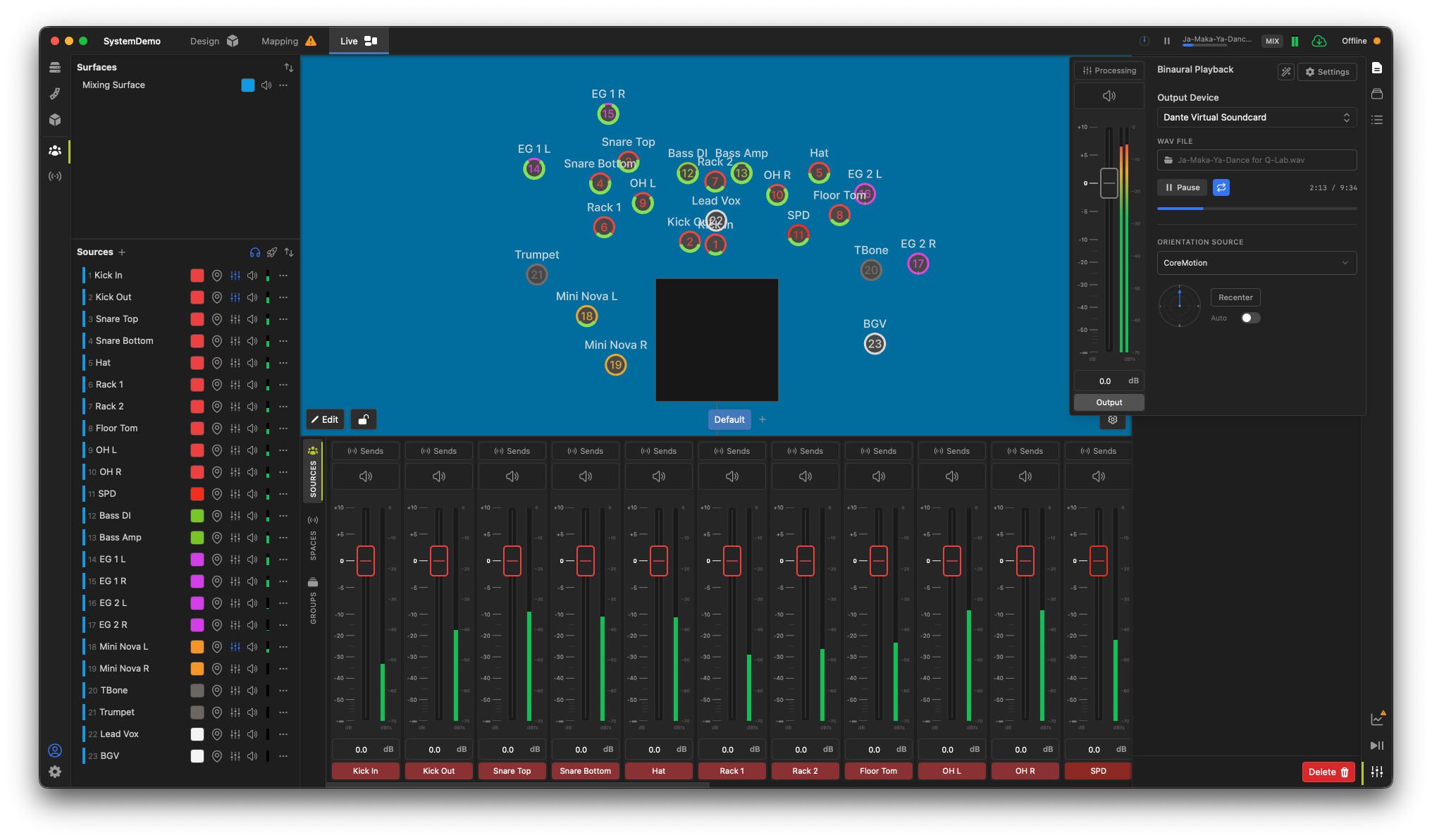

Listening to an Object-Based Mix in Mix Auralization Mode.

Binaural Head Tracking

Native Support for CoreMotion Headphones on Mac Devices

When using specific Apple-compatible headphones on a Mac device, Fulcrum One can use them for head tracking with no additional hardware or software required. Choose "CoreMotion" as the orientation source in the Binaural Playback panel or in the Binaural section of the software Settings menu. The following headphone models support CoreMotion technology, but not all have been verified through testing in Fulcrum One:

ManufacturerProductVerified
AppleAirPods Pro
AirPods Pro 2
AirPods Pro 3
AirPods Max
AirPods Max 2
AirPods 3
AirPods 4
BeatsBeats Fit Pro
Beats Solo 4
Beats Studio Pro
Powerbeats Fit
Powerbeats Pro 2

OSC Support for Head Tracking on Windows and Mac Devices

In addition to CoreMotion headphones, Fulcrum One can be made to support any generic headphone on either Mac or Windows devices using an external head tracking interface. One available option is the Supperware head tracking device, which includes a software application to bridge the tracker to OSC.

Configure your head tracking device to send ADM-formatted OSC messages (per the table below) to the Fulcrum One application and configure Fulcrum One to receive them. Note, the orientation source must be set to "Manual" in the head tracking settings for listener orientation to be interpreted.

AddressTypeUnitsMinMaxDescriptionADM Compatible
/adm/lis/yprfloatnormalizedYaw, Pitch, Roll of binaural listener orientation (degrees)
/adm/lis/xyzfloatnormalized-1.01.0X, Y, Z coordinate of binaural listener position
